Stulz 9000 CFM Electric Desiccant Dehumidifier
Stulz 9000 CFM Electric Desiccant Dehumidifier
Product Number:
SKU:
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Stulz 9000 CFM Electric Desiccant Dehumidifier

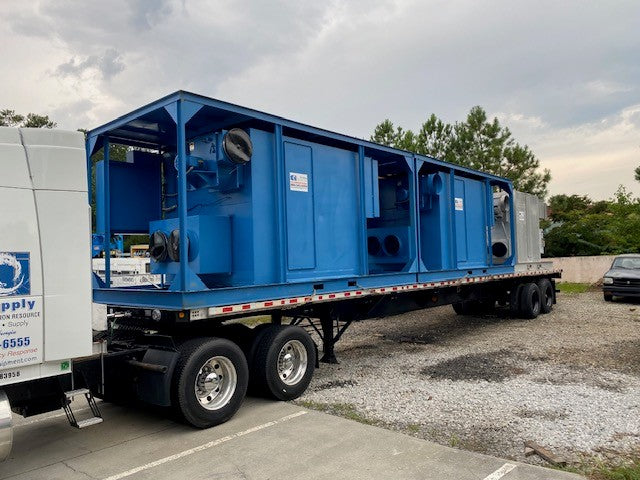

This trailer is a 30,000 CFM Electric Desiccant Trailer Package for Large Drying Jobs. The trailer includes 2-Stulz 9000 CFM Desiccant dehumidifiers and 1-AQS 12,000 CFM Electric Desiccant Dehumidifier.
Product Overview
The STULZ DESICAiR 9,000 CFM is an industrial-duty, high-capacity portable desiccant dehumidifier engineered for large-scale commercial restoration, structural drying, and demanding industrial moisture control applications. Built around advanced solid silica gel rotor technology, this electric reactivation system delivers exceptional water removal performance even in sub-freezing or low-humidity environments without requiring a liquid condensate drain.
Performance Specifications
- Process Air Volume: 9,000 CFM (Cubic Feet per Minute)
- Moisture Removal (AHAM): 295 lbs. per hour / 3,540 lbs. per day (At standard AHAM conditions: 80°F inlet, 60% Relative Humidity)
- Technology: Water adsorption via a continuous-rotation, non-toxic, non-corrosive solid silica gel desiccant wheel
- Airflow Pattern: Efficient concurrent process and reactivation air paths utilizing a true counterflow thermal transfer design
Electrical & Controls
- Reactivation Type: Proportional controlled electric heating
- Voltage Configuration: 460V / 60 Hz / 3-Phase power supply
- Power Connection: Single-point electrical hookup
-
Safety Features:
- Phase and voltage monitoring of incoming line power
- Built-in rotary fused main disconnect switch
- Exterior-mounted emergency stop (E-Stop) push button
-
Industrial control panel certified to UL 508A / UL 1995 standardsSystem Controller: Microprocessor-based STULZ E² controller featuring a backlit digital display, password protection, and automated fault/event logging.
Cabinet & Physical Features
- Construction Material: Heavy-duty, lightweight 5052 welded aluminum alloy cabinet providing corrosion protection and low air leakage
- Portability Structure: Heavy-duty structural skid base featuring integrated 4-way forklift slots for rapid deployment
- Duct Connections: Standard round process air connections equipped with raised duct beads to securely anchor industrial flexible ducting (typically 18” or 20” lines)
- Maintenance Access: Hinged cabinet panels providing quick toolless access to multi-stage air filters and internal components
